Linear Recessed 210 FB - Gardens at Night

Create a safe and sophisticated environment with the Step Linear Light Recessed 210. The slimline design with curved face has been designed to deliver a quality illumination that projects an even light across the surface. Time saving inclusions are standard for easy installation. Features include:

- Made from quality corrosion resistant brass
- IP66 weatherproof rating and resistant to dust providing a high level of protection against the elements
- IP67 disconnect/reconnect feature where suited
- Supplied fitted with unique toggle fixing system for an easy to install solution
- Supplied with matching screws and plugs.

Download the Step Linear Light Recessed 210 Data Sheet, Installation and Product information from the Resources section below.

Suited for use in decking, staircases and wall mounted settings. Wall or surface mounted. Installation canister available for off form concrete and masonry wall applications:

- Concrete application. Custom designed canister (sold separately) can be placed in slab prior to concrete pour to ensure easy installation. Render collar included with multiple fixing points
- Timber application. Cut-out for Step Linear Light Recessed 210 is 190m (W) x 30mm (H) x 70mm (minimum depth) to ensure sufficient space for connector and cable behind light fitting when installed. Refer to Installation Instructions.

Our range offers a selection of finishes to complement every outdoor space and project. Finishes available:

	BLK	Matt Black powder coat
	BZE	Bronze
	COP	Copper
	NKL	Nickel

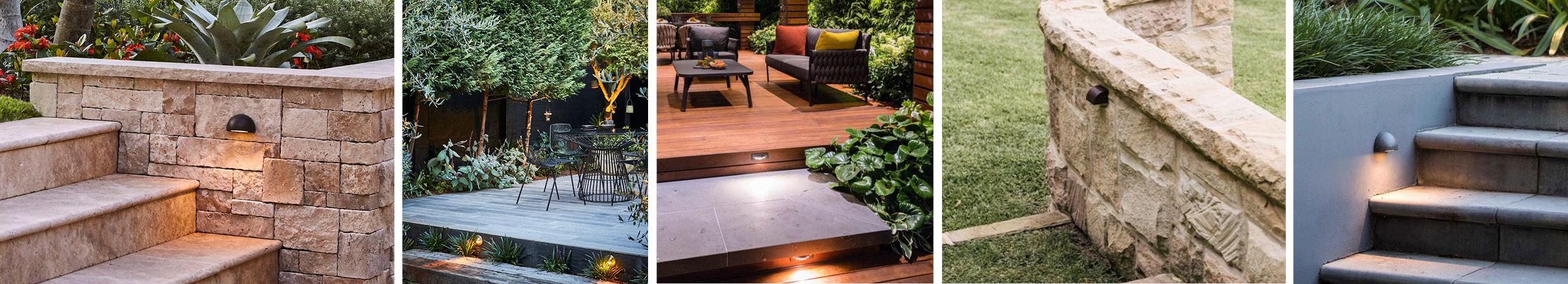

Click on image below for inspiration on Step Lights.

Standard range - locally stocked item

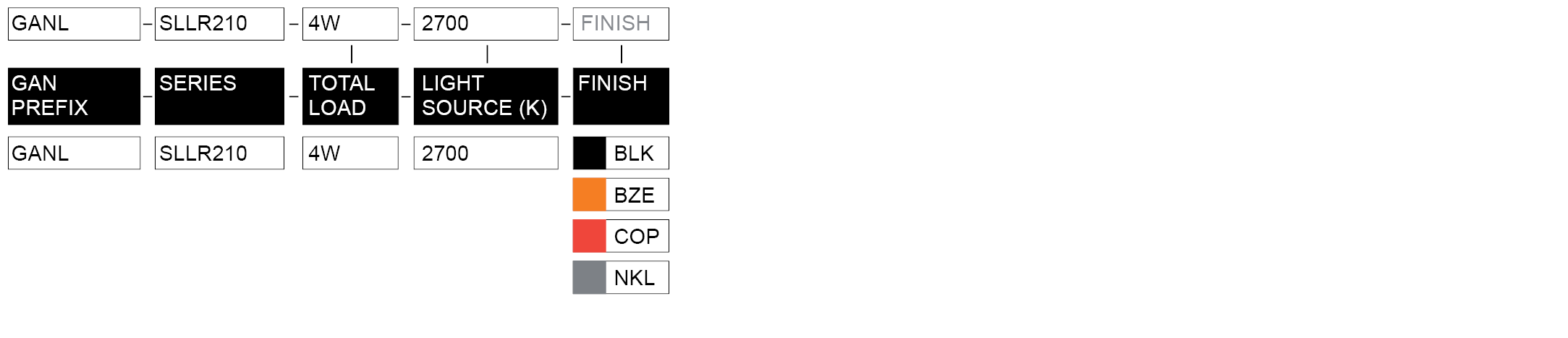

Designed to suit a variety of residential and landscaping applications the Standard range is readily available from your local Distributor. To identify your unique ordering code simply add your chosen finish to the end of the code matrix as shown below.

Custom configuration - commercial specification

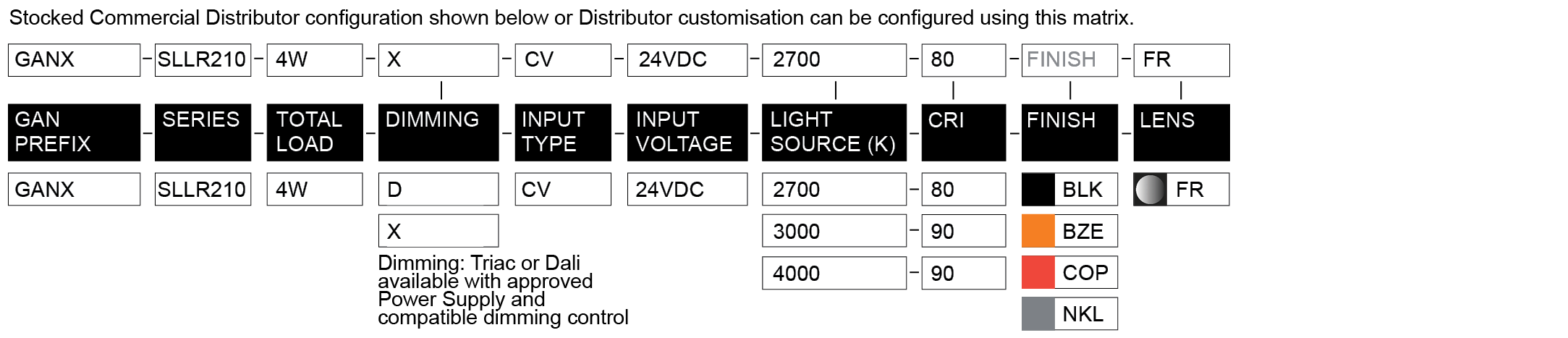

If required, we can provide a Custom solution to suit your large residential or commercial project. The following code matrix shows the options available. Production, costs and timing will vary depending on customisation. For assistance, speak to your local Commercial Distributor.
